Application:

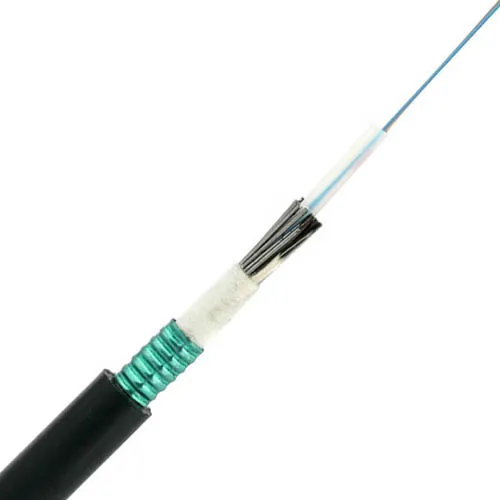

JINLONG steel wire Armored cables are lightweight with small diameter and designed for duct or direct burial installation with lashing method. The loose tube design with and steel tape for provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.
Design：
* Up to 24 fibers
* Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
* Can Moisture barrier with steel /polymer laminated tape.
* Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN
Mechanical and Environmental Test.
IEC 60794-1-E1：Tensile Strength
IEC 60794-1-E3 ：Crush Test
IEC 60794-1-E4：Impact Test
IEC 60794-1-E6：Repeated Bending
IEC 60794-1-E7：Torsion
IEC 60794-1-F5B：Water Penetration
IEC 60794-1-F1：Temperature Cycling
IEC 60794-1-E14：Compound Flow
Typical Parameters
| Fiber count | Cable size
(mm) | Cable weight
(kg/km) | Min.bending radius
(mm) | Permissible tensile force
(N) | Permissible pressure force
(N/100mm) |
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term |
| 2-12 | 9.3 | 100 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 12-24 | 10.6 | 125 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| "D" is cable diameter. |
All sizes and proformance values can be specified by customer.
