JLOFC-dry core FO cable.pdf

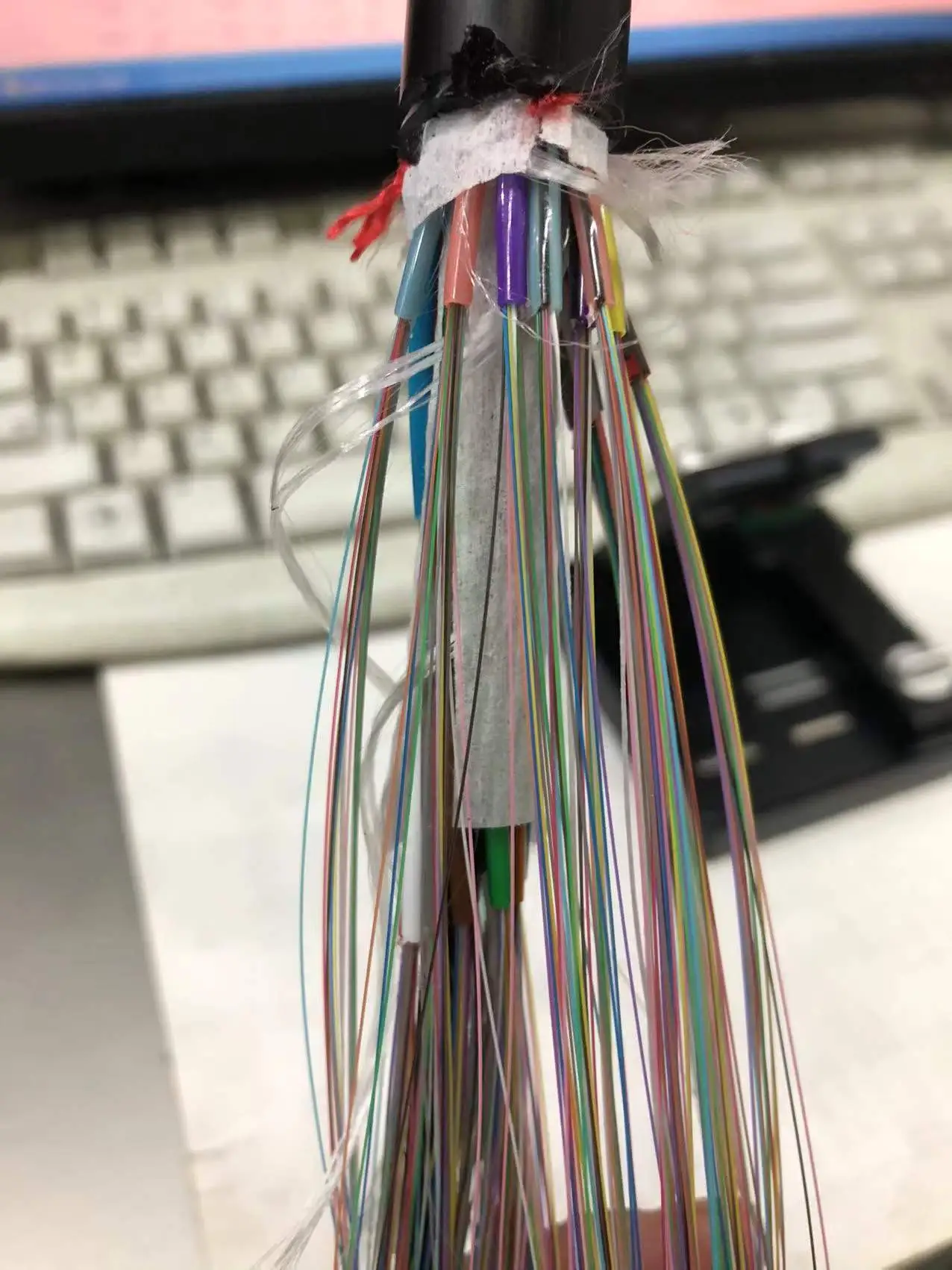

-JLOFC dry core stranded loose tube cables are designed for outdoor use for campus, city and intercity backbones in duct installations.
Application
Aerial
pipeline
Properties : Main mechanical properties
| Max Tension(N) | Max Crush Resistance (N/100mm) | Min. Bend Radius |
| Long | Short | Long | Short | Installation | Static |
| 1000 | 2000 | 1000 | 2000 | 20xOD | 10XOD |
Environmental conditions
| Temperature Range, Installation | -20℃ + 70℃ |
| Temperature Range, operation | -40℃ + 70℃ |
| Temperature Range, Storage | -40℃ + 70℃ |
Design
| Cable size |
|
|
|
|
|
| Fiber number | 12 | 24 | 36 | 48 | 72 | 96 | 144 288 |
| Central Element | FRP |
|
|
|
|
|
|
| Fiber Coloring | Bule, Orange, Green, Brown,Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fiber per tube | 12 |
| Loose tube color coding | Bule, Orange, Green, Brown,Slate, White, Red, Black, Yellow, Violet, Rose, Aqua Bule*, Orange*, Green*, Brown*,Slate*, White*, Red*, Black*, Yellow*, Violet*, Rose*, Aqua* |
| Number of rip cord | 2 |
|
|
|
|
|
|
| Stripe | Red |
|
|
|
|
|
|
| Outer jacket material | HDPE |
|
|
|
|
|
|
| Tape | Water-swellable |
| OD (mm) | 8.8 | 8.8 | 8.8 | 10.2 | 10.2 | 11.8 | 14.4 16.9 |
| Weight(kg/km) | 60 | 60 | 60 | 82 | 82 | 109 | 160 179 |
Standards
| Fiber Standards | TIA/EIA-492CAAB,IEC60793-2-50 Type B1.3, ITU-T G.652.D ISO/IEC11801 Ed2.2 |
| Water blocking | IEC 60794-1-2 F5 |
| Fiber | Single-mode ITU G.652.D |
| Max Attenuation | 1310nm/1383nm/1550nm | 0.36dB/km/0.36dB/km/0.22dB/km |
